Part 2: Virtual Pinball Backbox and Audio System

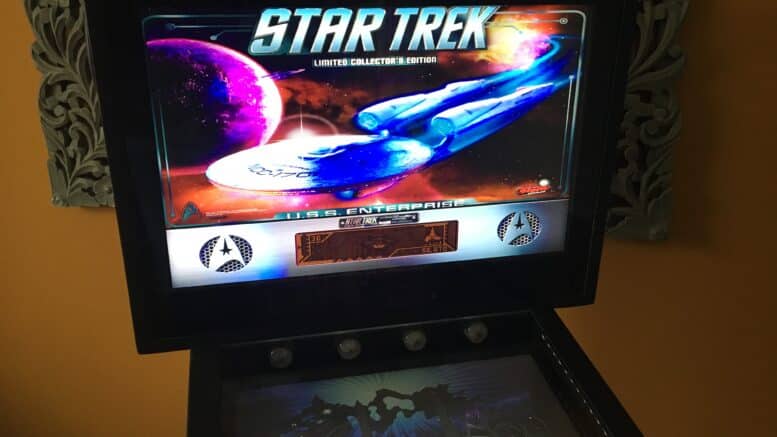

Pinball Backbox with backglass for "Star Trek" - Emulator Visual Pinball X (B2S Server). Integrated DMD.Pinball Backbox with backglass for "Star Trek" - Emulator Visual Pinball X (B2S Server). Integrated DMD.

The backbox portion of the table serves two purposes: to hold the main electronics of the game (easy accessible) and to attract players with a decorative piece of art located on the backglass.

The most important purpose, however, is to show the score during play on a DMD. A DMD (short for Dot Matrix Display) is the part of a pinball machine which is used to show information to the player during their game like their score, active modes, animations or other information relevant to the game. Because of the low resolution of a DMD it ads some very special “retro romance”.

In a virtual pinball machine backbox, DMDs are either simulated on the backbox-monitor (single Monitor), a second, smaller monitor is used as DMD (2 monitors) or a real DMD display module is installed in the backbox.

Backbox of a Virtual Pinball with the table "Spiderman"

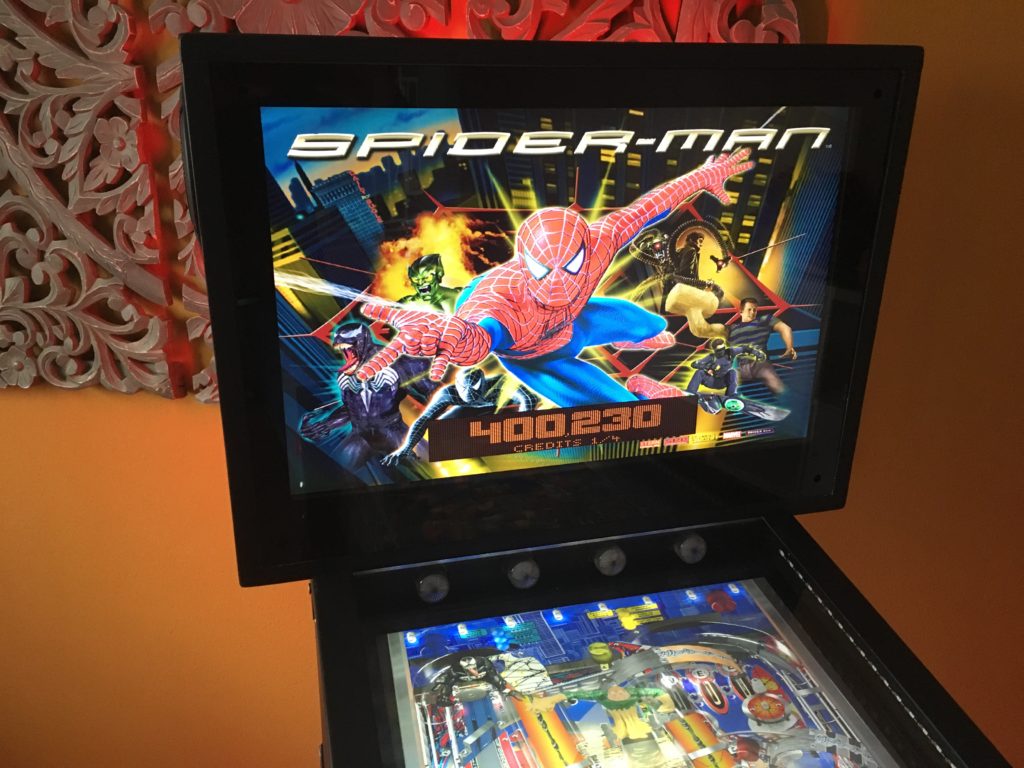

Backbox of my virtual pinball machine (single Monitor, 19′) with the table “Spiderman”

If that is still not enough, a small monitor or display can be mounted on top of the backbox as a “topper”.

For my mid-size pinball machine I went with a nice 19′ single backglass monitor and I’m very happy with that. The score is displayed above the artwork in the grill.

For additional visual effects, if’ve mounted two rows of addressable RGB LED stripes on the backside of the pinball cabinet backbox. Here’s a step-by-step on how to set up LEDs stripes in your virtual pinball using a Teensy controller board.

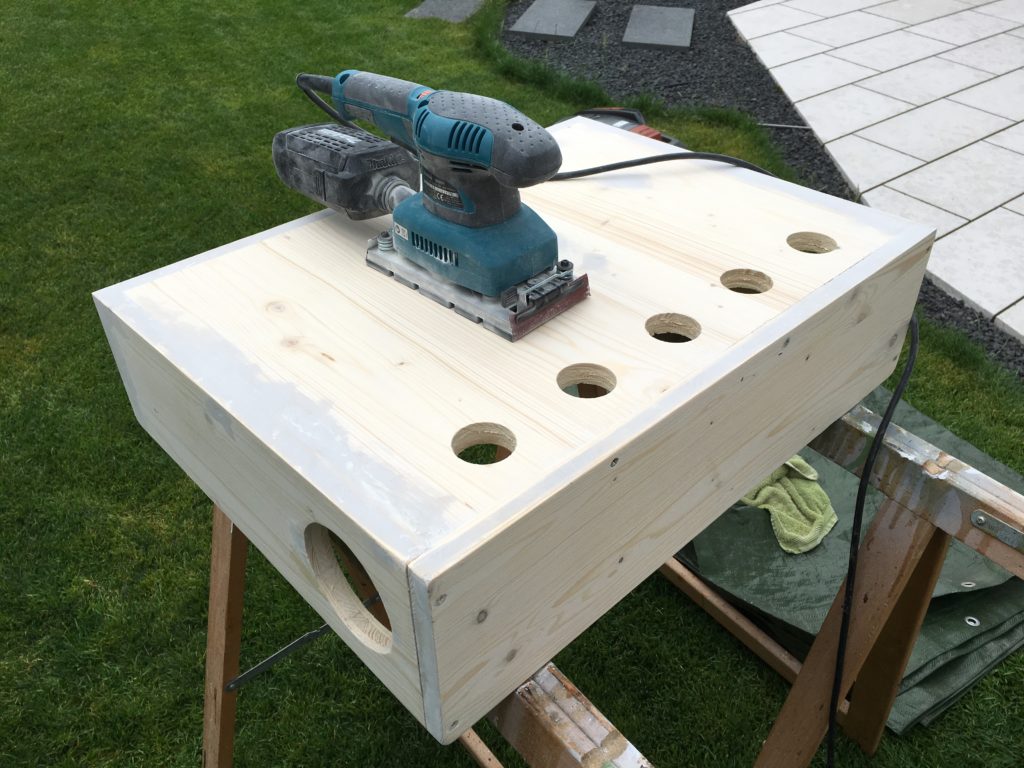

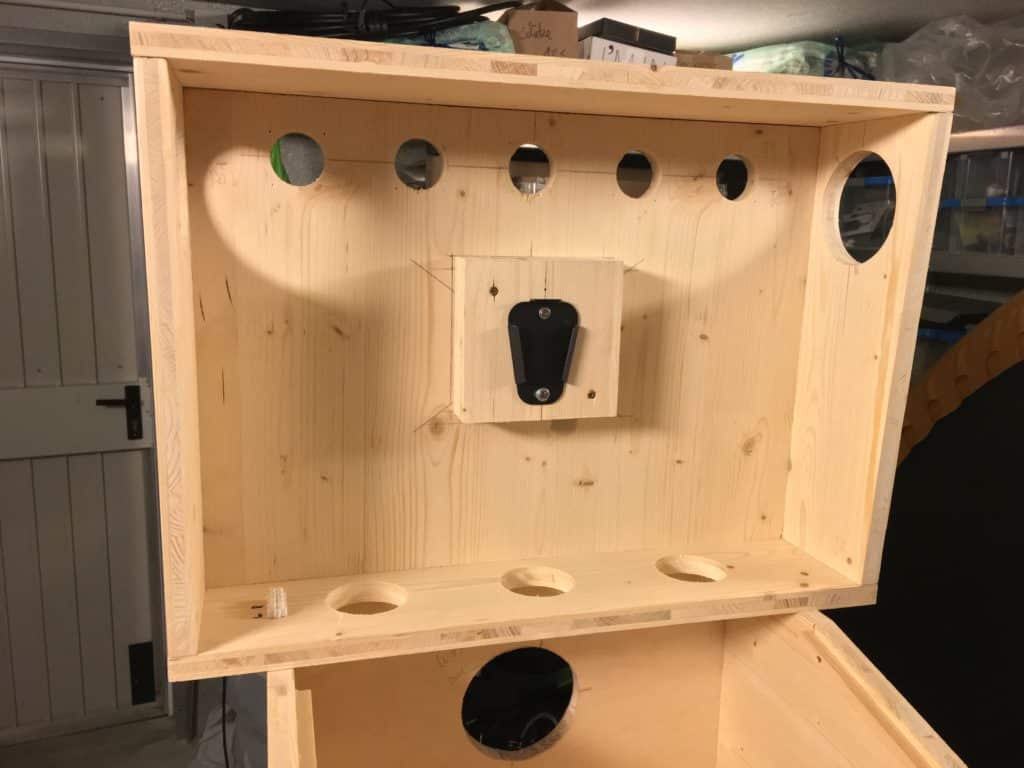

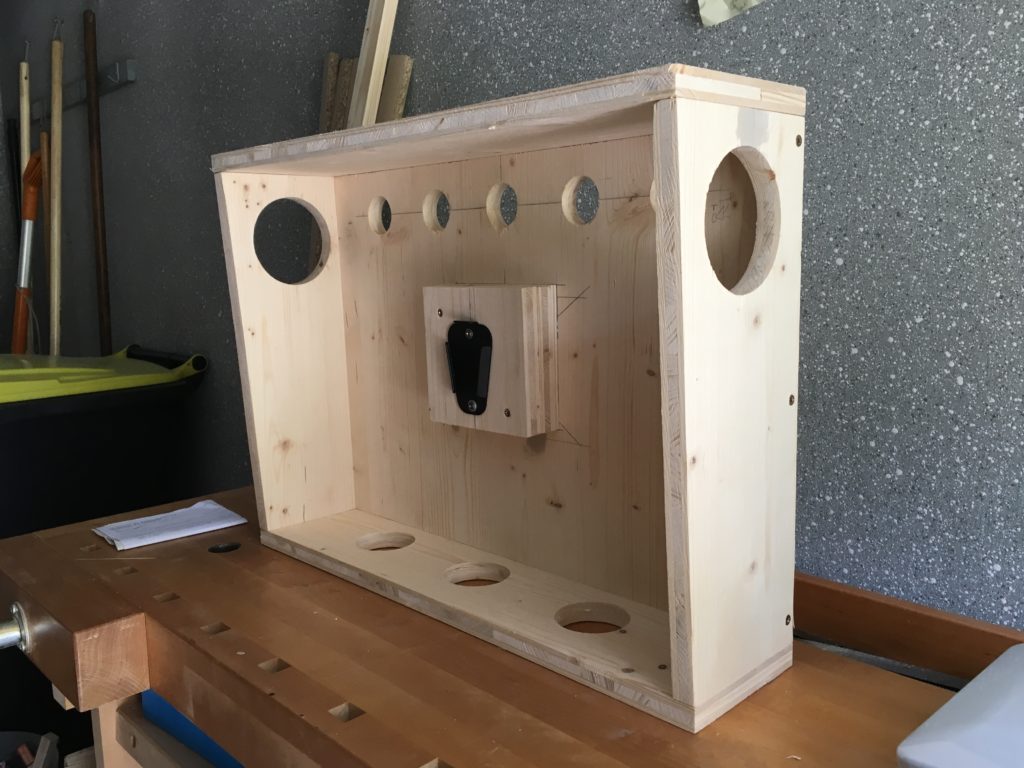

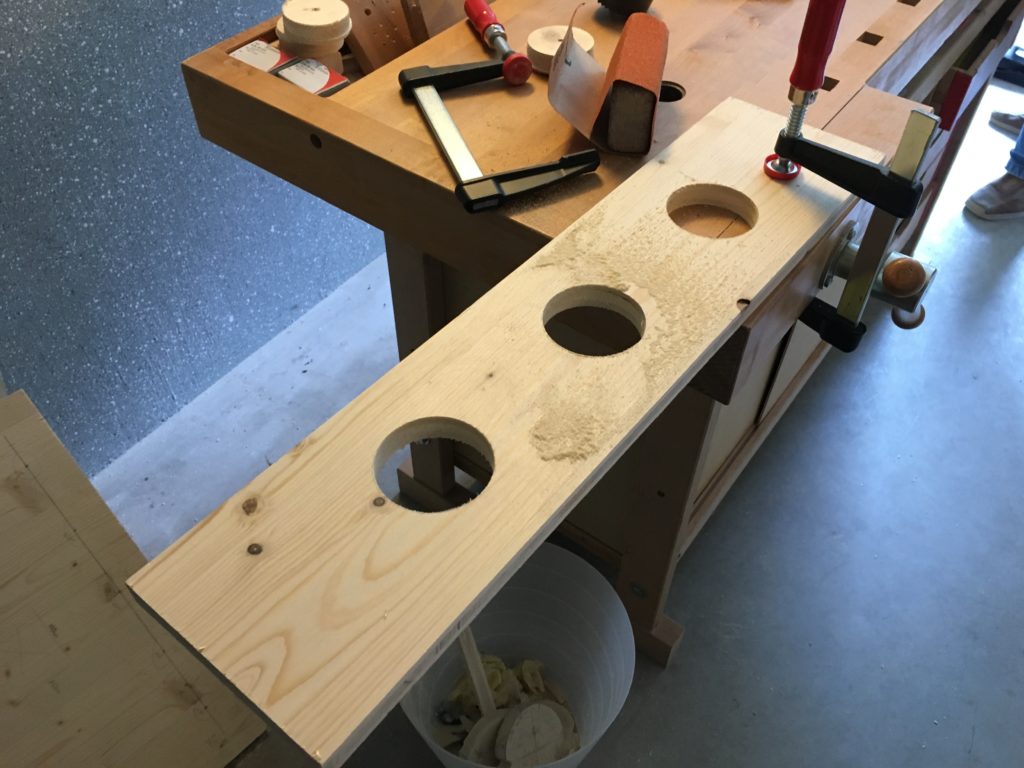

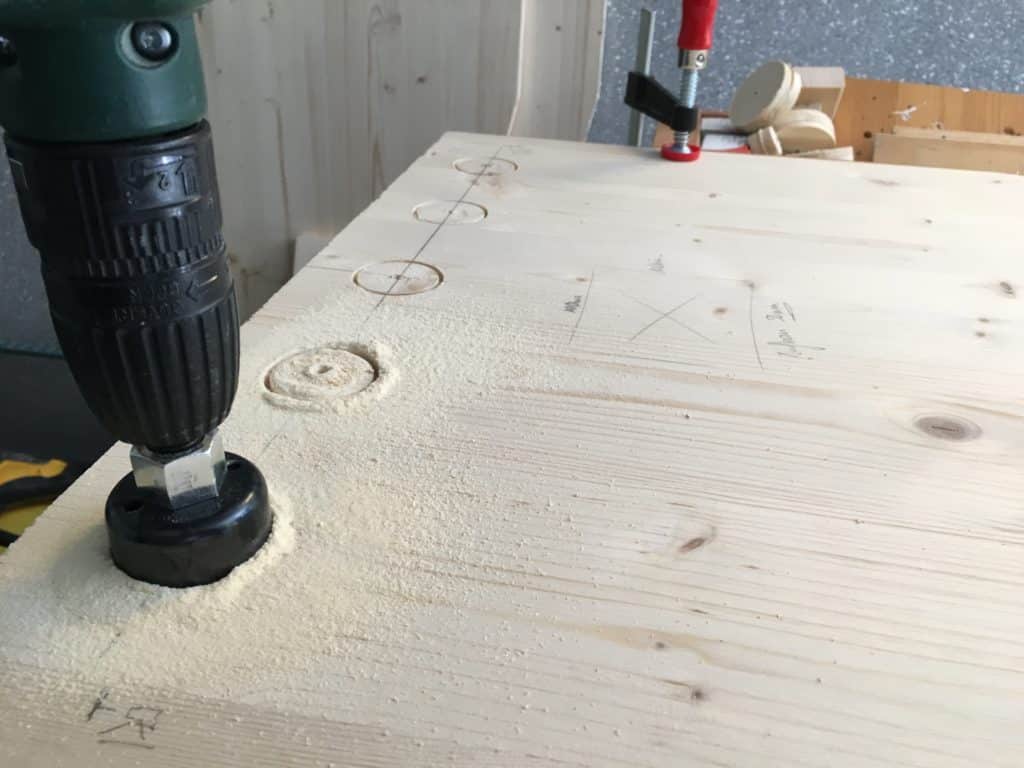

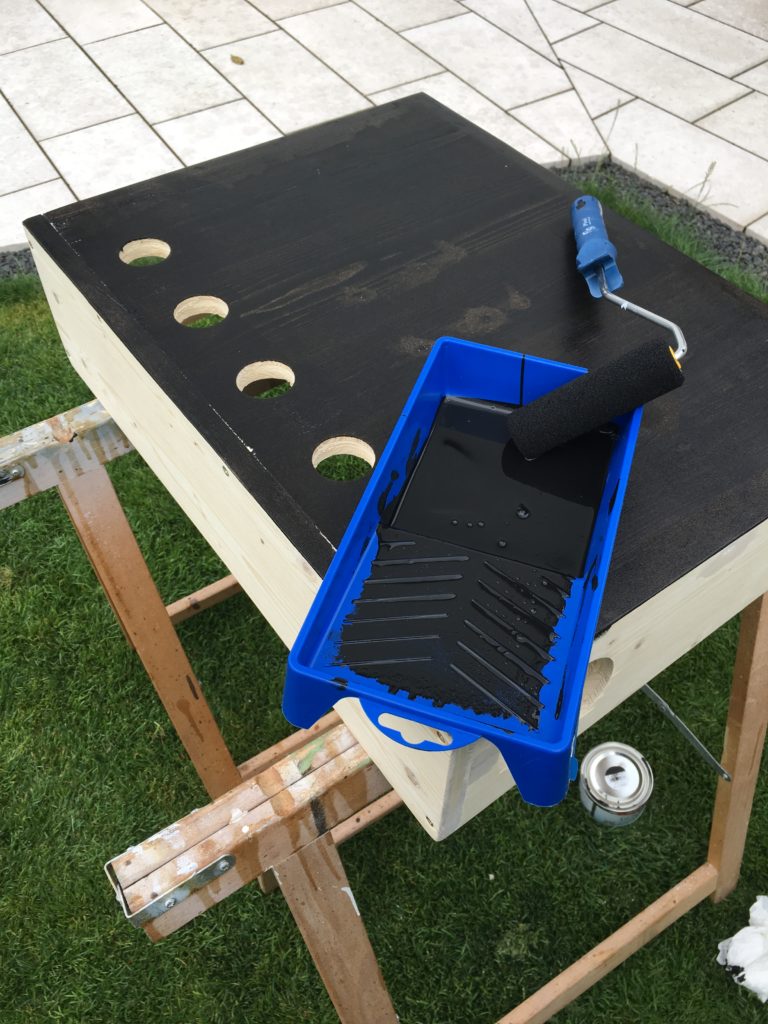

Building a pinball backbox

Virtual Pinball Audio System

For powerfull soundeffects when playing the tables, I’ve installed two 20Watt broad band speaker (100mm) in the backbox. My audio setup:

  • Speaker: 2x Visaton FR 10 4 Zoll 10.16cm broad band speaker-chassis 20W 8Ω (Link: Amazon.de)
  • 2x Visaton 10 RS speaker grille (Link: Amazon.de)
  • Stereo-Amp: LEPY LP-V3S-BLACK LP-V3S Digitalverstärker 25Wx2, Schwarz, Black (Link: Amazon.de)

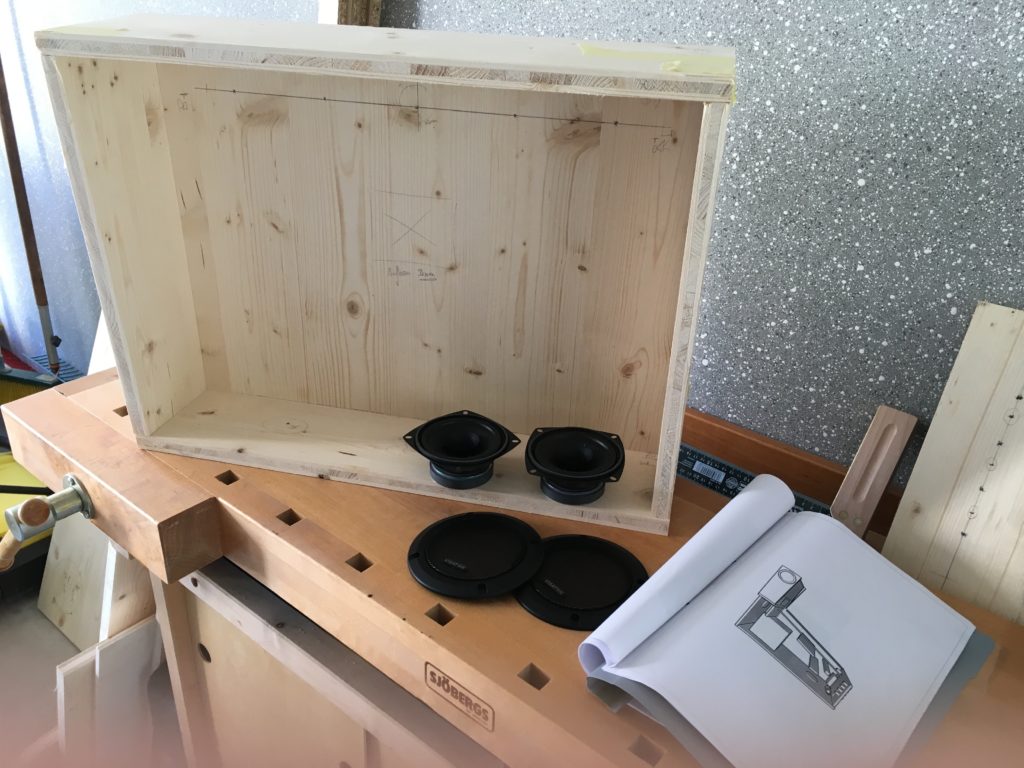

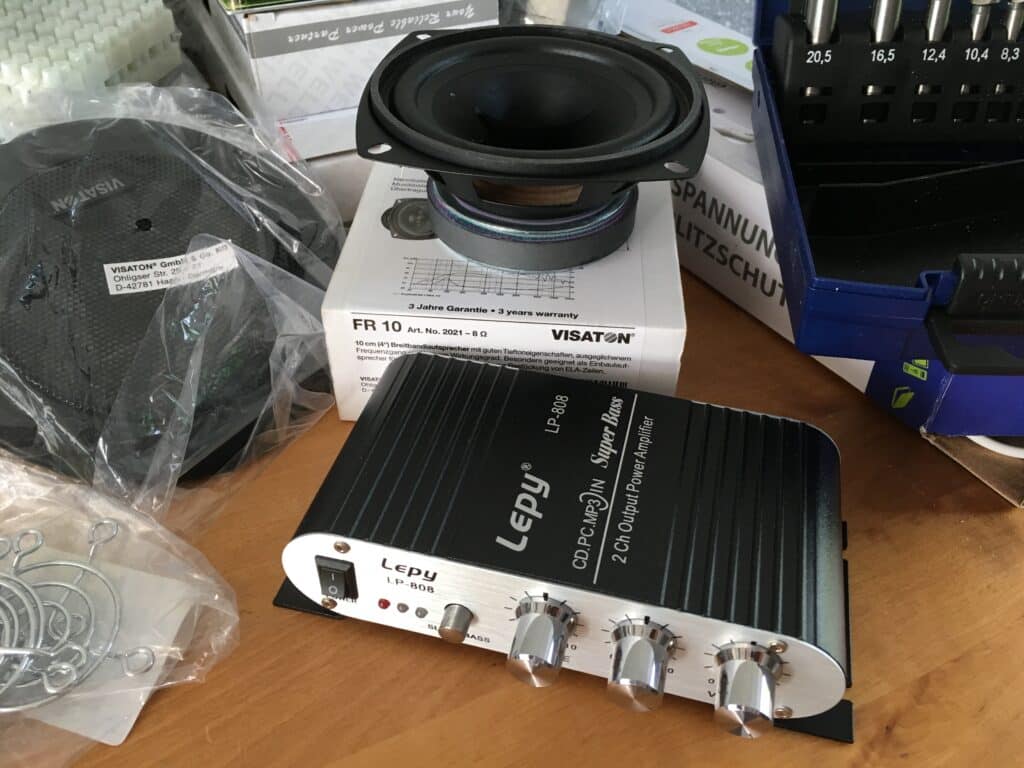

Audio Setup with speaker (Visaton FR 10 4 Zoll), grille (Visaton 10 RS) and stereo amp (LEPY LP-V3S-BLACK LP-V3S) of my virtual pinball cabinet
Audio Setup with speaker (2x Visaton FR 10 4 Zoll), grille (2x Visaton 10 RS) and stereo amp (LEPY LP-V3S-BLACK LP-V3S) of my virtual pinball cabinet

Easy access to the Stereo-Amp through the service door of the virtual pinball cabinet:

Easy access to the Stereo-Amp by service door of the virtual pinball cabinet

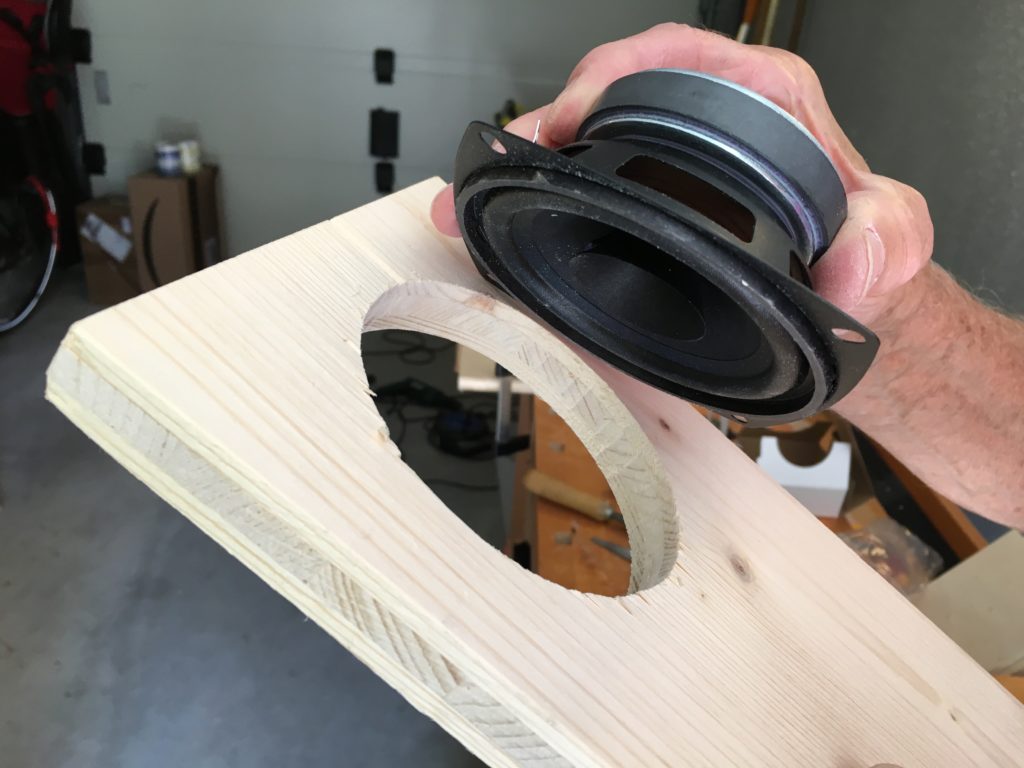

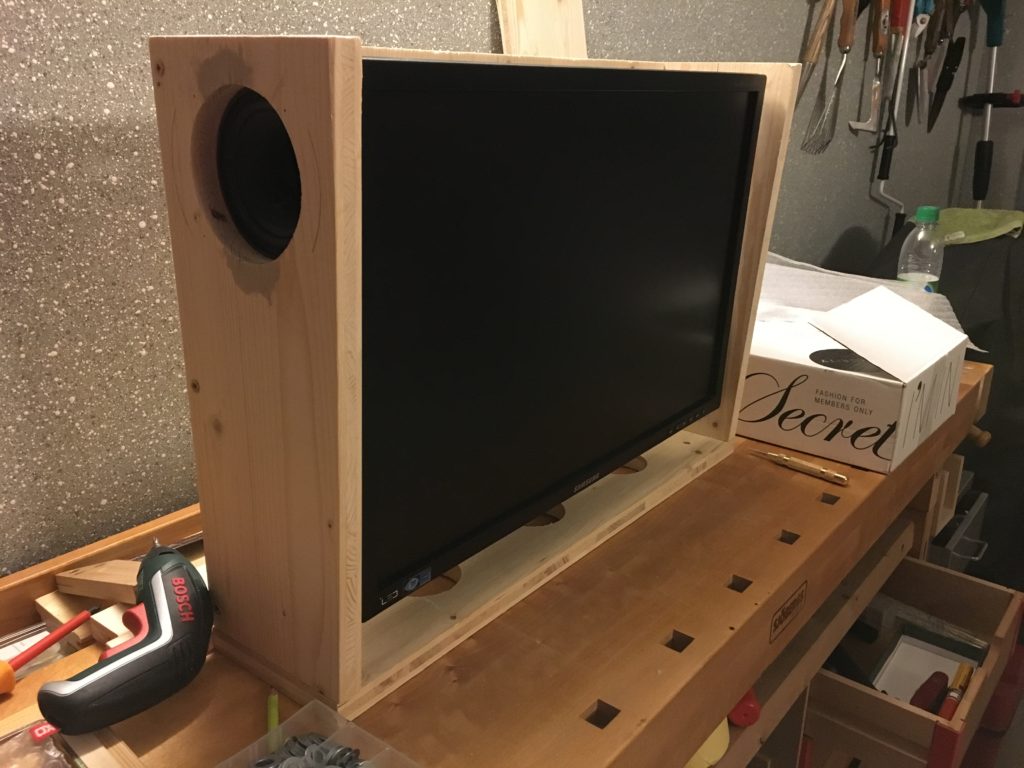

Speaker (20W, 100mm) and speaker grille in the backbox of my virtual pinball cabinet

Speaker in the backbox of my virtual pinball cabinet

A note about the speakers: In retrospect I would not mount the speakers to the side of the backbox, but would choose a solution with a higher backbox and speakers to the front of the player. Better sound. Is actually logical. A learning for pinball #2.
