Part 8: simple virtual pinball playfield monitor hinge

How to build a simple virtual pinball playfield monitor hinge to lift your playfieldHow to build a simple virtual pinball playfield monitor hinge to lift your playfield

The virtual pinball’s main electronic parts are set below the playfield monitor. Therefore, I needed a way to quickly get to the inner workings of the pinball if necessary, without having to remove the bulky monitor every time: a playfield monitor hinge.

The following approach turned out to work nicely: The monitor is mounted on a kind of seesaw with a Vesa 100×100 monitor mount.

Virtual Pinball Cabinet-tiltable mount for Playfield monitor with monitor mount (here Vesa 100 x 100)

A simple construction made out of left over wood parts.

Virtual Pinball Cabinet-tiltable bracket for Playfield Monitor-round wood hinge

The beech round wood is fixed on the seesaw with appropriate hardware store fittings. Two simple screws would stop the board from slipping left and right.

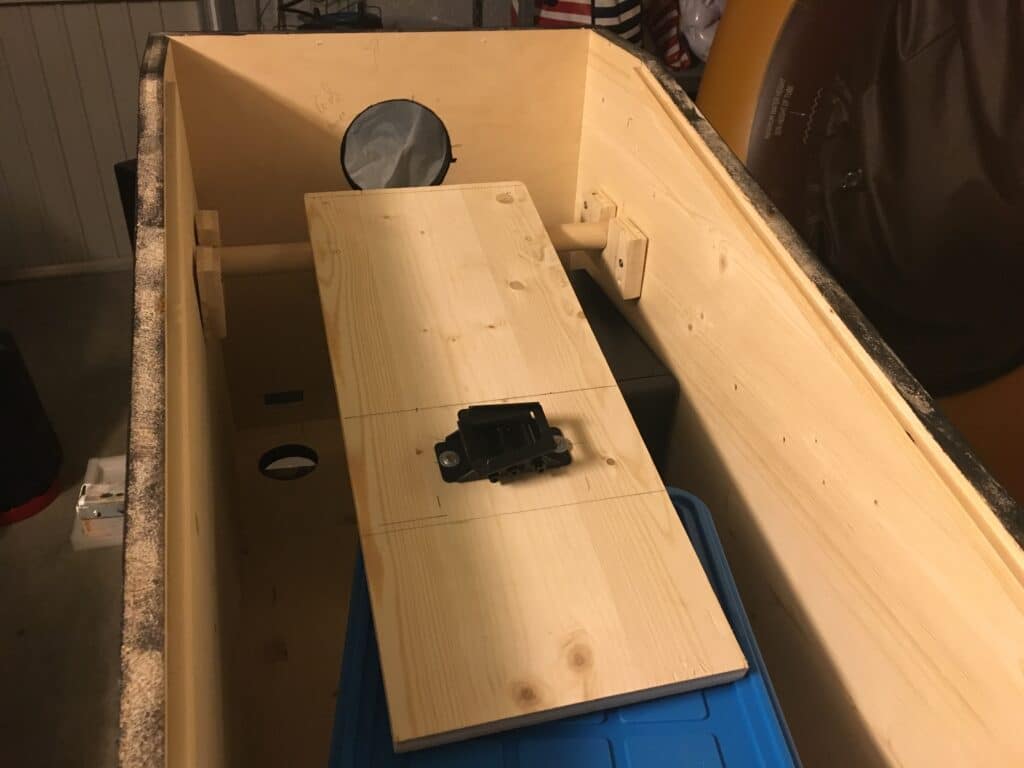

Virtual Pinball Cabinet-tiltable mount for Playfield Monitor

Fitting of the monitor seesaw into the Pinball Cabinet. I replaced the first monitor mount for one that allows to adjust inclination angle top/down and left to right in order to be able to fit in the monitor exactly.

Nice thing about using the “U” shape cutouts to hold the bar is you can remove the monitor easily if need be. Also, notice the pipe clamp brackets that hold the wooden post in place. You can loosen them and have the ability to slide your monitor side to side to get it centered as well.

Virtual Pinball Cabinet-tiltable bracket for Playfield Monitor-round wood hinge fitting

Where to put the pivot point of your virtual pinball cabinet Playfield hinge

Quote from “mjr” at vpforums.org:

“Be sure to pay attention to the geometry when figuring out where to put the pivot point:

1.  Put it far enough forward that you can tilt the TV most of the way up.  The backbox ledge can get in the way if you put the pivot point too far back.

2.  Put it far enough back that the back of the TV won’t dip too far down into the cabinet when you tilt it up.  It might hit components inside the cab if it dips down too far.”

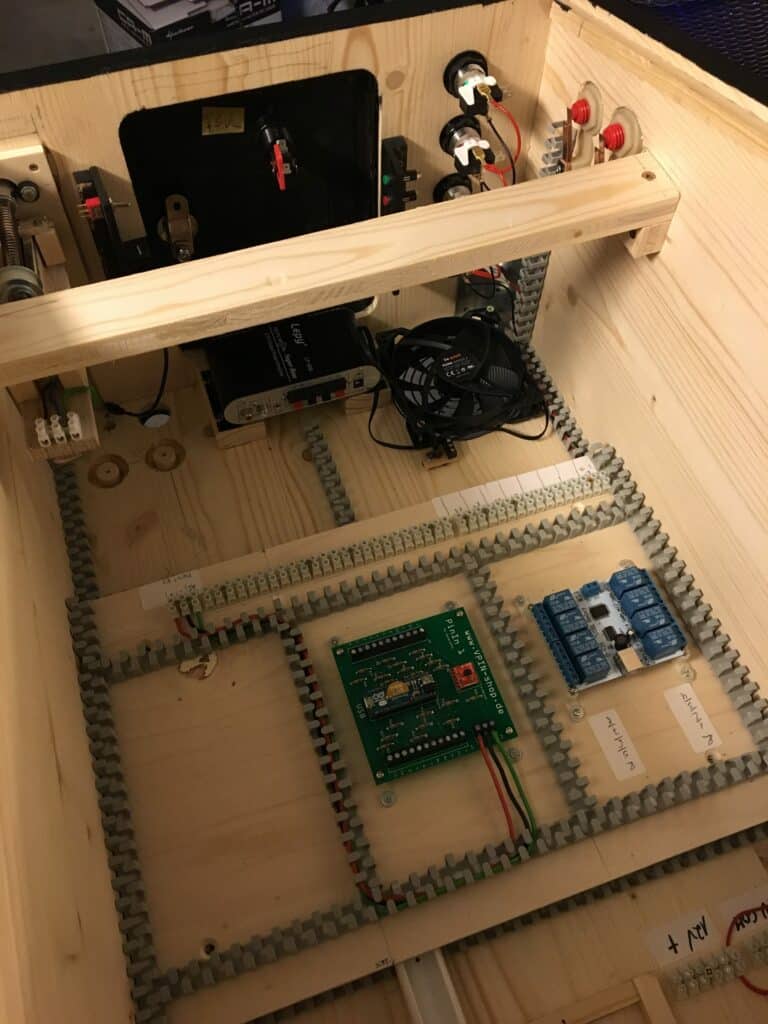

The monitor is placed on a ledge at the foot end.

Virtual Pinball Cabinet-Playfield Monitor Retaining bar

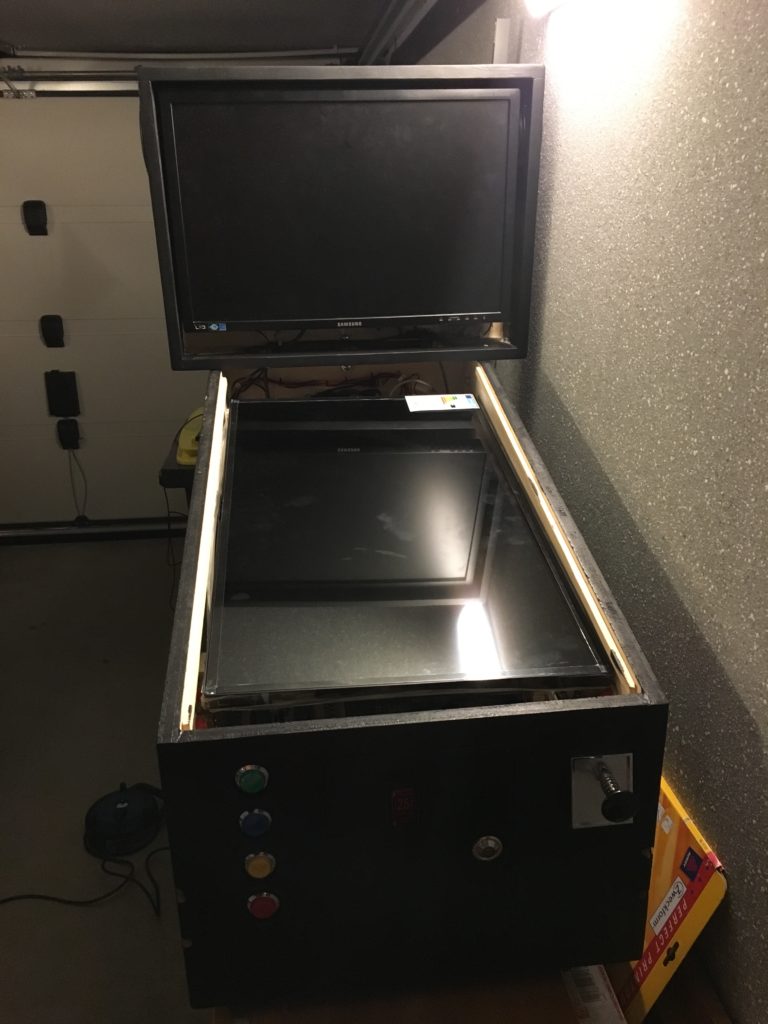

Test mounted playfield monitor on the monitor seesaw as well as backbox monitor. The monitor mount allows the playfield to be properly aligned in the cabinet.

Virtual Pinball Cabinet-Monitor mounted on the tiltable mount.

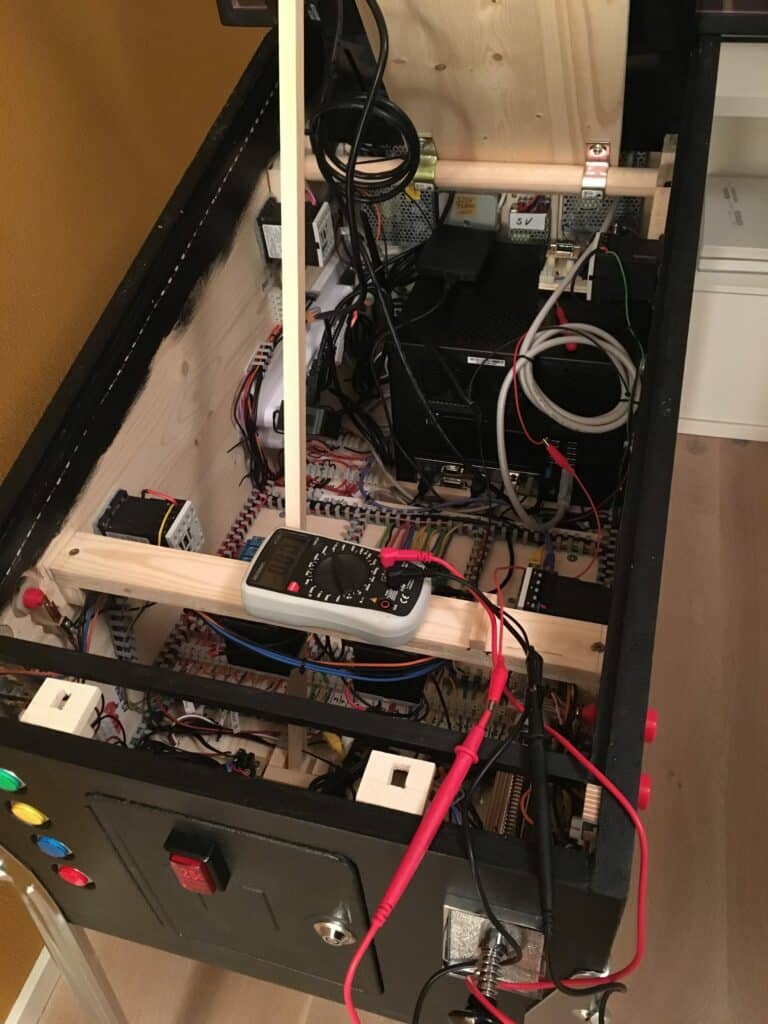

A 15x15mm square timber serves as a seating aid, fixing the monitor like rod under a car’s cooling hood. Work on the electronics is therefore possible quickly and without any hassle.

Virtual Pinball open with set up Playfield monitor.

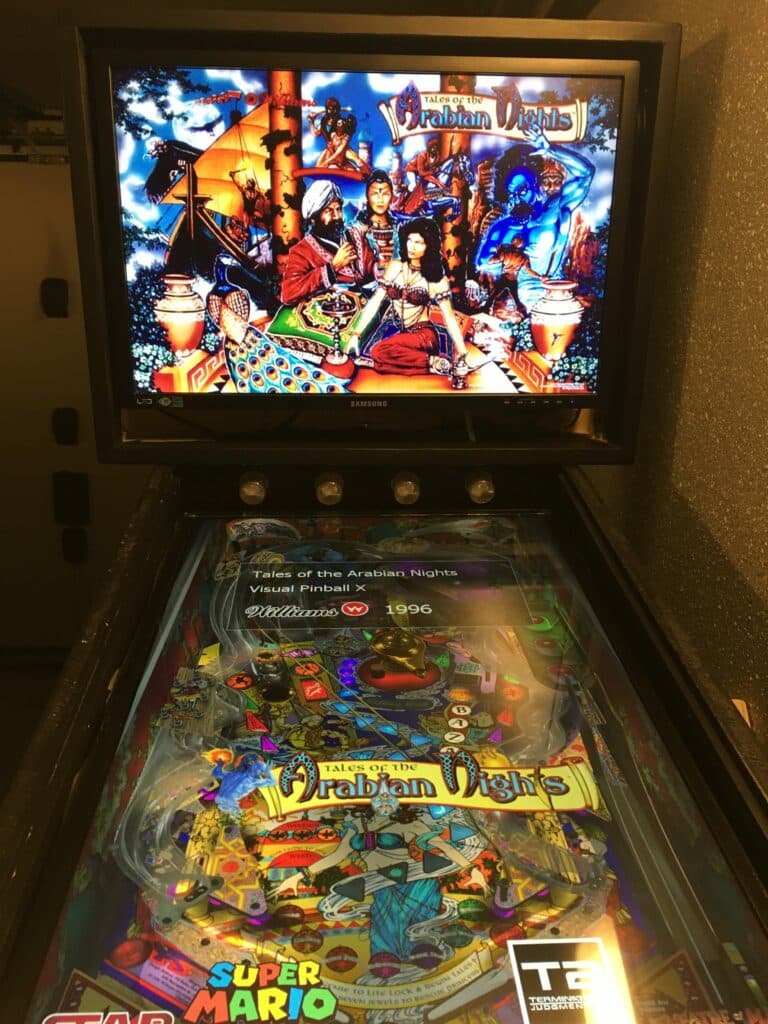

Tataaa: The Virtual Pinball Cabinet with a fully assembled pinball backbox (still without backglass) and Playfield monitor on the monitor seesaw.

Virtual Pinball Cabinet with fully mounted backbox and Playfield monitor.

Whatever mechanics you come up with, definitely do this!  It’s really useful to be able to get into the cabinet so easily, without having to get out any tools or take anything apart.

More to come…
